YXZ2Z1 / N2XRH

Açıklama

tds

Code
N2XRH , YXZ2Z1                    CU/XLPE/SWA/HFFR
N2XR(a)H , YXZ2(a)Z1         CU/XLPE/AWA/HFFR
Voltage Rating
0.6/1 kV
Standards
TS HD 604 S1-KISIM 5G , VDE 0276
IEC 60228Conductor
EN 61034Smoke Density
EN 50267Halogen Free
EN 60332-3Flame Retardant (Cat C)
Reaction to Fire Classification ( CPR )
EN 60332-1-2Flame Retardant
Conductor
Solid Copper Conductor (Class 1)
Stranded Copper Conductor (Class 2)
Insulation
XLPE (Cross-linked Polyethylene)
Filler
Halogen Free Filler
Armour
Round Steel Wire (Aluminium Wire for One Core Cables)
Sheath
Halogen Free Sheath
Technical Data
Max. Operating Temperature:90°C
Short  Circuit  Temperature:250°C (max.5 sec)
Bending Radius:15D ( D : Overall Diameter )
Test Voltage:3,5 kV
Application
These are cables with low dielectric losses used in energy networks in refineries, mines, hotels, schools,
 tunnels high constructions hospitals, power plant, data processing centers, business centers where there is a risk of fire.
Nominal Cross SectionOverall DiameterNet WeightDelivery LengthResistance at 20°CCurrent Carrying Capacity
(mm²)(mm)(kg/km)(m)(ohm/km)In Ground at 20°CIn Air at 30°C
1×4*11,7222,210004,615547
1×6*12,2254,910003,086859
1×10*13,5316,010001,839181
1×16*14,5394,610001,15117109
1×25*16,1523,410000,727150146
1×35*17,3633,510000,524179179
1×50*18,9786,610000,387211218
1×70*20,71007,710000,268257275
1×95*23,31323,810000,193304336
1×120*25,01582,510000,153341388
1×150*27,11917,810000,124377438
1×185*29,42331,710000,0991418501
1×240*32,32908,65000,0754469508
1×300*36,33732,95000,0601514654
1×400*40,34627,75000,0470565733
1×500*44,25863,22500,0366623825
Nominal Cross SectionOverall DiameterNet WeightDelivery LengthResistance at 20°CCurrent Carrying Capacity
(mm²)(mm)(kg/km)(m)(ohm/km)In Ground at 20°CIn Air at 30°C
2×1,512,7303,2100012,13125
2×2,513,5348,110007,414033
2×414,4421,510004,615243
2×615,4485,610003,086554
2×1018,8753,510001,838775
2×1621,0968,410001,15113100
2×2524,91456,410000,727146136
2×3527,21741,510000,524176165
2×5030,72227,510000,387208201
2×7035,43039,85000,268256255
2×9539,93905,75000,193307314
2×12043,64673,55000,153349364
2×15049,56183,35000,124391416
2×18554,07242,32500,0991442480
2×24060,38972,52500,0754509565
Nominal Cross SectionOverall DiameterNet WeightDelivery LengthResistance at 20°CCurrent Carrying Capacity
(mm²)(mm)(kg/km)(m)(ohm/km)In Ground at 20°CIn Air at 30°C
3×1,513,1332,8100012,13125
3×2,514,0386,910007,414033
3×2,5 rm14,5411,810007,414033
3×415,0467,910004,615243
3×4 rm15,5496,610004,615243
3×616,9644,010003,086554
3×6 rm17,7692,710003,086554
3×1019,7873,710001,838775
3×1622,71253,110001,15113100
3×2526,11727,910000,727146136
3×3528,82145,610000,524176165
3×5032,52718,410000,387208201
3×7038,03812,610000,268256255
3×9542,44879,95000,193307314
3×12047,56154,75000,153349364
3×15052,67609,45000,124391416
3×18557,59083,62500,0991442480
3×24064,311135,92500,0754509565
3×30070,113537,82500,0601569643
3×40080,517835,02500,0470637737
Nominal Cross SectionOverall DiameterNet WeightDelivery LengthResistance at 20°CCurrent Carrying Capacity
(mm²)(mm)(kg/km)(m)(ohm/km)In Ground at 20°CIn Air at 30°C
2×16+1021,91148,010001,15 – 1,83113100
2×25+1625,01572,710000,727 – 1,15146136
2×35+1626,71822,710000,524 – 1,15176165
3×16+1023,71406,610001,15 – 1,83113100
3×25+1627,31904,61000 0,727 – 1,15146136
3×35+1629,62305,810000,524 – 1,15176165
3×50+2534,63224,810000,387 – 0,727208201
3×70+3539,34333,05000,268 – 0,524256255
3×95+5044,05508,45000,193 – 0,387307314
3×120+7050,17161,25000,153 – 0,268349364
3×150+7054,08358,32500,124 – 0,268391416
3×185+9559,810324,32500,0991 – 0,193442480
3×240+12066,212527,82500,0754 – 0,153509565
3×300+15073,816534,92500,0601 – 0,124569643
3×400+18582,919848,92500,0470 – 0,0991637737
Nominal Cross SectionOverall DiameterNet WeightDelivery LengthResistance at 20°CCurrent Carrying Capacity
(mm²)(mm)(kg/km)(m)(ohm/km)In Ground at 20°CIn Air at 30°C
4×1,513,9375,5100012,13125
4×2,514,8441,310007,414033
4×416,8627,110004,615243
4×618,0768,310003,086554
4×6 rm18,9803,410003,086554
4×1021,11025,110001,838775
4×1624,41481,610001,15113100
4×2528,42077,510000,727146136
4×3531,32596,410000,524176165
4×5036,83586,210000,387208201
4×7041,54689,35000,268256255
4×9547,56355,95000,193307314
4×12052,47732,25000,153349364
4×15057,79389,32500,124391416
4×18563,611185,72500,0991442480
4×24070,713756,62500,0754509565
4×30079,018153,92500,0601569643
4×40088,722018,72500,0470637737
Nominal Cross SectionOverall DiameterNet WeightDelivery LengthResistance at 20°CCurrent Carrying Capacity
(mm²)(mm)(kg/km)(m)(ohm/km)In Ground at 20°CIn Air at 30°C
5×1,514,6458,2100012,13125
5×2,516,6642,110007,414033
5×417,8775,010004,615243
5×619,1935,010003,086554
5×1023,31406,810001,838775
5×1626,21910,310001,15113100
5×2530,82708,110000,727146136
5×3534,93606,210000,524176165
5×5040,04713,25000,387208201
5×7046,36534,25000,268256255
5×9552,28404,45000,193307314
5×12057,310209,72500,153349364
5×15063,612392,82500,124391416
5×18569,814783,62500,0991442480
5×24079,419694,82500,0754509565
5×30086,724073,62500,0601569643
5×40097,529585,42500,0470637737
7×2,5 rm18,4731,010007,4121,517,0
24×2,526,41638,710007,4112,510,5
Note 1:
*For N2XR(a)H , YXZ2(a)Z1 cables
Note 2:
Current carrying capacities are valid at 30°C ambient temperature

İlgili ürünler

RZ1MZ1 K

RZ1MZ1-K

Code RZ1MZ1-K                    CU/XLPE/SWA/HFFR RZ1MAZ1-K                 CU/XLPE/AWA/HFFR Voltage Rating 0.6/1 kV Standards UNE 21123-4 IEC 60228 Conductor EN 61034 Smoke Density EN
Devamını oku

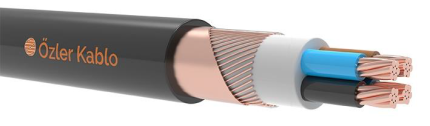

YXCZ1 N2XCH

YXCZ1 / N2XCH

Code N2XCH , YXCZ1        CU/XLPE/SC/HFFR Voltage Rating 0.6/1 kV Standards TS HD 604 S1-KISIM 5G , VDE 0276 IEC 60228
Devamını oku

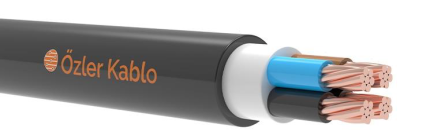

YXZ1 N2XH

YXZ1 / N2XH

Code N2XH , YXZ1        CU/XLPE/HFFR Voltage Rating 0.6/1 kV Standards TS HD 604 S1-KISIM 5G , VDE 0276 IEC 60228
Devamını oku

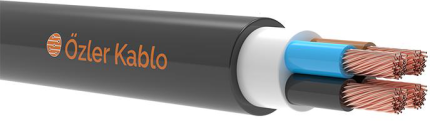

YXZ1 F N2XH F

YXZ1-F / N2XH-F

Code N2XH-F , YXZ1-F – RZ1-K         CU/XLPE/HFFR Voltage Rating 0.6/1 kV Standards TS HD 604 S1-KISIM 5G , VDE 0276
Devamını oku
YXZ2Z1 F N2XRH F

YXZ2Z1-F / N2XRH-F

Code N2XRH-F , YXZ2Z1-F                    CU/XLPE/SWA/HFFR N2XR(a)H-F , YXZ2(a)Z1-F         CU/XLPE/AWA/HFFR Voltage Rating 0.6/1 kV Standards TS IEC 60502-1 IEC 60228 Conductor
Devamını oku

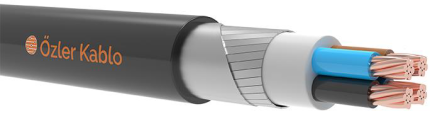

YXZ3Z1 N2XFGBH

YXZ3Z1 / N2XFGBH

Code N2XFGbH , YXZ3Z1                    CU/XLPE/STA/HFFR Voltage Rating 0.6/1 kV Standards TS HD 604 S1-KISIM 5G , VDE 0276 IEC 60228
Devamını oku

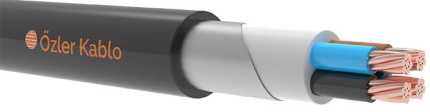

YXZ4Z1 N2XBH

YXZ4Z1 / N2XBH

Code N2XBH , YXZ4Z1                   CU/XLPE/STA/HFFR N2XB(a)H , YXZ4(a)Z1        CU/XLPE/ATA/HFFR Voltage Rating 0.6/1 kV Standards TS IEC 60502-1 , VDE 0276
Devamını oku

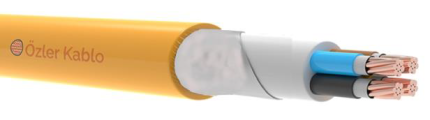

YXZ4Z1 FE 180 N2XBH FE 180
