NYM

Açıklama

tds

Code
NYM , NVV      CU/PVC/PVC
Voltage Rating
300/500 V
Standards
TS HD 21.4 S2 , BS 6004 , IEC 60227 , VDE 0250
IEC 60228Conductor
Reaction to Fire Classification ( CPR )
EN 60332-1-2Flame Retardant
Conductor
Solid Copper Conductor (Class 1)
Stranded Copper Conductor (Class 2)
Insulation
PVC (Polyvinyl Chloride)
Filler
PVC Filler
Armour
–
Sheath
PVC (Polyvinyl Chloride)
Technical Data
Max. Operating Temperature:70°C
Short  Circuit  Temperature:160°C (max.5 sec.)
Bending Radius:12D ( D : Overall Diameter )
Test Voltage:2 kV
Application
In dry rooms, switch and distribution boards, for laying in conduit on and under plaster and on insulating supports above plaster
Nominal Cross SectionOverall DiameterNet WeightDelivery LengthResistance at 20°CCurrent Carrying Capacity
(mm²)(mm)(kg/km)(m)(ohm/km)In Ground at 20°CIn Air at 30°C
1×1,55,255,210012,1–18
1×2,55,771,11007,41–26
1×46,289,51004,61–34
1×66,7112,61003,08–44
1×108,8181,110001,83–61
1×169,8249,410001,15–82
1×2511,4361,610000,727–108
1×3513,0479,010000,524––
Nominal Cross SectionOverall DiameterNet WeightDelivery LengthResistance at 20°CCurrent Carrying Capacity
(mm²)(mm)(kg/km)(m)(ohm/km)In Ground at 20°CIn Air at 30°C
2×1,58,7126,010012,1–18
2×2,59,9168,31007,41–26
2×410,8215,11004,61–34
2×611,8272,61003,08–44
2×1015,9456,910001,83–61
2×1618,1631,110001,15–82
2×2521,7949,110000,727–108
2×3524,81251,810000,524––
2×10 re15,0451,010001,83–61
Nominal Cross SectionOverall DiameterNet WeightDelivery LengthResistance at 20°CCurrent Carrying Capacity
(mm²)(mm)(kg/km)(m)(ohm/km)In Ground at 20°CIn Air at 30°C
3×1,59,1147,110012,1–18
3×2,510,4200,21007,41–26
3×411,4260,91004,61–34
3×612,8350,11003,08–44
3×1016,9565,910001,83–61
3×1619,6815,610001,15–82
3×2523,51228,910000,727–108
3×3526,31598,810000,524––
3×10 re15,9561,410001,83–61
Nominal Cross SectionOverall DiameterNet WeightDelivery LengthResistance at 20°CCurrent Carrying Capacity
(mm²)(mm)(kg/km)(m)(ohm/km)In Ground at 20°CIn Air at 30°C
4×1,59,9176,210012,1–18
4×2,511,3243,11007,41–26
4×412,8333,71004,61–34
4×614,4447,61003,08–44
4×1018,4703,710001,83–61
4×1621,41021,210001,15–82
4×2526,11572,810000,727–108
4×3528,92019,610000,524––
4×10 re17,3699,310001,83–61
Nominal Cross SectionOverall DiameterNet WeightDelivery LengthResistance at 20°CCurrent Carrying Capacity
(mm²)(mm)(kg/km)(m)(ohm/km)In Ground at 20°CIn Air at 30°C
5×1,510,6243,610012,1–18
5×2,512,2339,21007,41–26
5×414,3479,41004,61–34
5×615,6617,810003,08–44
5×1020,1984,610001,83–61
5×1623,81448,610001,15–82
5×2528,52194,110000,727–108
5×3532,02847,010000,524––
5×10 re18,9973,910001,83–61
7×1,512,4293,4100012,1–18
7×2,514,1405,910007,410–26
Note :
Current carrying capacities are valid at 30°C ambient temperature

İlgili ürünler

6181 YH

6181 YH

Code : 6181 YH   CU/PVC/PVC Voltage Rating : 300/500 V Standards : BS 6004 IEC 60228 Conductor Reaction to Fire
Devamını oku
CYKYL U

CYKYL-U

Code CYKYL-U      CU/PVC/PVC Voltage Rating 450/750 V Standards CSN 347656 – CSN 34615 IEC 60228 Conductor Reaction to Fire Classification
Devamını oku
FLAT

FLAT

Code FLAT        CU/PVC/PVC Voltage Rating 300/500 V Standards BS 6004 IEC 60228 Conductor Reaction to Fire Classification ( CPR )
Devamını oku
H03VVH2 F H05VVH2 F

H03VVH2-F / H05VVH2-F

Code H03VVH2-F, H05VVH2-F, A05VVH2-F    CU/PVC/PVC Voltage Rating 300/300 V , 300/500 V Standards TS EN 50525-2-11 Special Values IEC 60228
Devamını oku
H05V K H07V K

H05V-K / H07V-K

Code H05V-K , H07V-K    CU/PVC Voltage Rating 300/500 V , 450/750 V Standards EN 50525-2-31 / VDE 0281 / IEC
Devamını oku

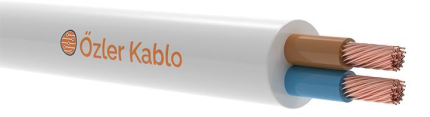

H05VV F

H05VV-F

Code H05VV-F       CU/PVC/PVC Voltage Rating 300/500 V Standards EN 50525-2-11 , VDE 0281 , IEC 60227 , BS 6500 IEC
Devamını oku
H07VVH6 F

H07VVH6-F

Code H07VVH6-F      CU/PVC/PVC Voltage Rating 450/750 V Standards EN 50214 , IEC 60227 IEC 60228 Conductor Reaction to Fire Classification
Devamını oku

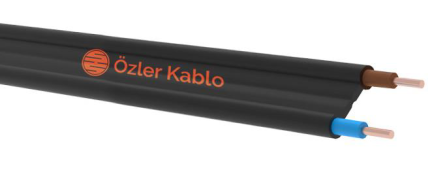

NYIFY U
